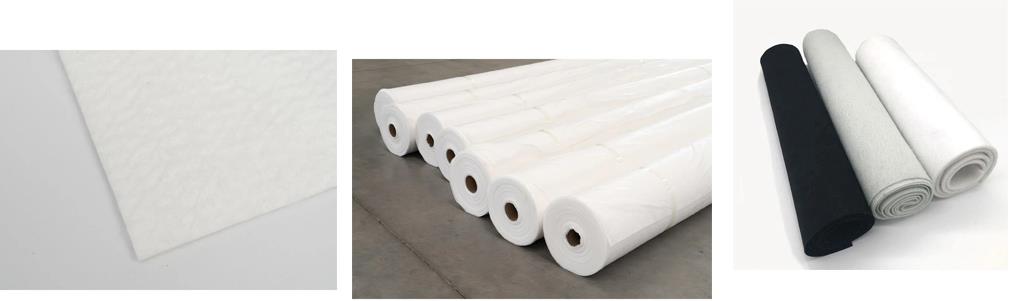

Fiber Needle Punched Pet Polyster PP Prolypropylee Non Woven Geotextile


PET staple needled punched nonwoven geotextile is produced with PET staple fiber as the main raw material. It has the functions of isolation, filtration, drainage, reinforcement, protection and maintenance.

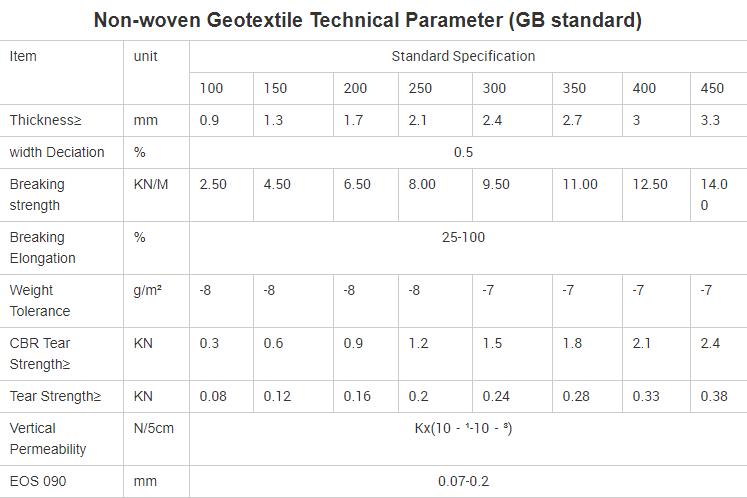

O Product specification
80g~1200g; 1 ~6m in width, and the length is according to the customer’s demand.
 Product features
It has good flexibility, good water permeability, excellent performance of filtration, drainage, isolation and enhancement, and is convenient for construction.

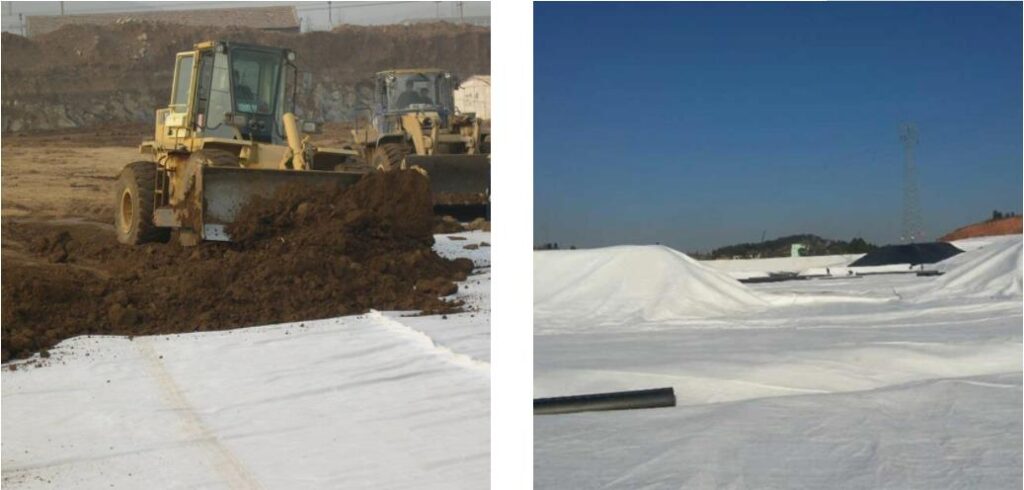

How to install  geotextile fabric

Let us show you how easy the installation is and provide a few useful tips along the way. In our example,

Step 1 – Prep the road surface

First, you will need to excavate the roadway to the desired elevation. Then fully compact your subgrade, making sure you have removed all air and tightened the soil completely.

Step 2 – Unroll the reinforcement geotextile fabric

Roll the geotextile fabric on the compacted subgrade, making sure it’s free of wrinkles and folds. Overlap your fabric as directed by the engineer. Cherokee can pre-sew the fabric for you if a stitch seam is required. Contact your Cherokee representative to get pricing on factory seamed rolls in a wider widths.

Step 3 – Sew the geotextile fabric

This job required the fabric to be stitched on the job site. The fabric needs to be seamed with a dual thread lock stitch to prevent it from unthreading. We have equipment available for purchase or rental to do the stitching on the job. At the engineers discretion you can choose a prayer seam, j-seam, or butterfly seam. In this example we will be using a j-seam. We recommend doing two stitches on each seam to prevent any failure during installation.

Step 4 – Apply Aggregate

Place your aggregate to the specified thickness, ensuring that no equipment drives directly on the engineered fill. Make sure the fill has reached full compaction before the final step.

Step 5 – Lay Asphalt

Now that you have placed your subbase you are ready for your pavement layer (or layers depending on the project type).
