ISO HDPE Impermeable Geomembrane for Pond Landfill and Tunnel

HDPE Geomembrane Description

Basic Details
Geomembrane; pond liner
1.Main Thickness:0.5mm, 0.75mm,1.0mm,1.5mm,2.0mm,3.0mm,4.0mm,5.0mm
2.Main Width:4m, 5m, 5.8m, 6.0m, 7m, 8m, 10m
3.Main Length:50m/100m
4.Main Color: black, white, blue, green

  1. Optional surface: Textured or Smooth surface.
    6.Material:HDPE, LDPE,LLDPE,EVA
  2. Quality Control: Third party test and factory lab test

HDPE Geomembrane and pond liner is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications.

HDPE Geomembrane Characteristics:

1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation

HDPE Geomembrane Main Features:

1.UV resistance
2. Anti-seepage;
3. Isolation
4. High tearing resistance
5. Puncture-resisting

HDPE Geomembrane  pond liner Technical Parameter

                   Spec
Properties
Test method
ASTM
GMS0.5GMS0.75GMS1.0GMS1.25GMS1.5GMS2.0GMS2.5
ThicknessD51990.5mm0.75mm1.00mm1.25mm1.50mm2.00mm2.50mm
Density (≥  g/cc)D15050.9400.9400.9400.9400.9400.9400.940
Tensile Properties
(Each direction) (≥)
•   yield strength
•   break strength
•   yield elongation
•   break elongation
D 6693
Type IV


8 kN/m
14kN/m
12%
700%


11 kN/m
20kN/m
12%
700%


15 kN/m
27 kN/m
12%
700%


18 kN/m
33 kN/m
12%
700%


22 kN/m
40 kN/m
12%
700%


29 kN/m
53 kN/m
12%
700%


37kN/m
67kN/m
12%
700%
Tear Resistance (≥)D 100464 N93 N125 N156 N187 N249 N311 N
Puncture Resistance (≥)D 4833160 N240 N320 N400 N480 N640 N800 N
Stress Crack Resistance (≥)D 5397300 hr.300 hr.300 hr.300 hr.300 hr.300 hr.300 hr.
Carbon Black ContentD 16032.0-3.0%2.0-3.0%2.0-3.0%2.0-3.0%2.0-3.0%2.0-3.0%2.0-3.0%
Carbon Black DispersionD 5596Note(1)Note(1)Note(1)Note(1)Note(1)Note(1)Note(1)
Oxidative Induction Time (OIT) (≥)
(a)Standard OIT
– or –
(b)High Pressure OIT


D 3895

D 5885


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.

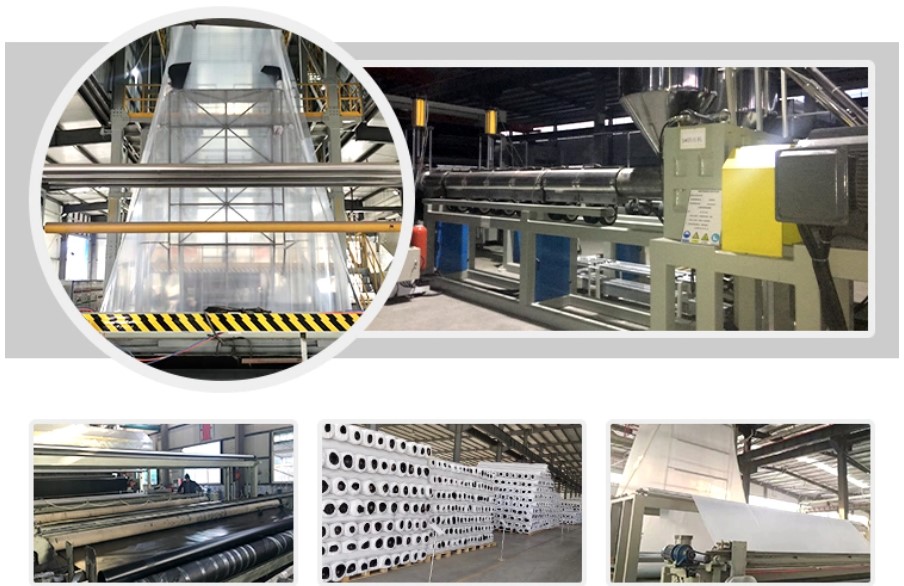

HDPE Geomembrane production

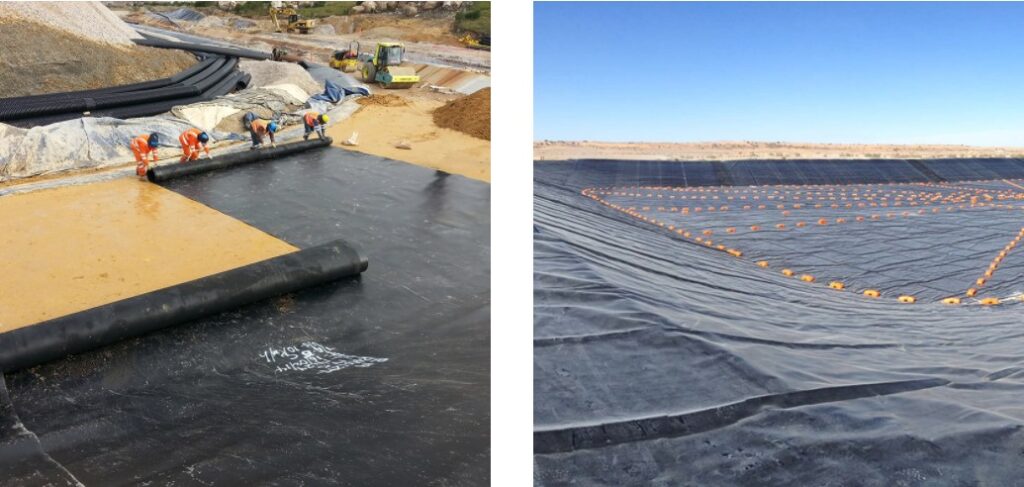

HDPE Geomembrane Application:

(1)Aquaculture:
        Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.

(2)Landfill:
        HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.

(3)Water Treatment System :
        HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.
(4)Mining:
          HDPE geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc
