Road Construction Fabric Geotextile for Soil Erosion Control

Product Description

The non-woven geotextile is made of filament or short fiber laid into a network through different equipment and processes. After needle punched and other processes, different fibers are interwoven and intertwined to make the fabric standardized,soft, full, thick and hard, so as to meet the requirements of different thickness.

The non-woven geotextile has good fabric gap and good adhesion Due to the softness of the fiber, it has certain tear resistance, good deformation adaptability, and good plane drainage capacity. The surface is soft and multi gap, and has a good friction coefficient, which can increase the adhesion capacity of soil particles, prevent the loss of particles by preventing the loss of particles, and eliminate the excess water. The surface is soft and has good protection ability. According to the length of filament, it can be divided into filament non-woven geotextile or short filament non-woven geotextile. They can play a very good filtration, isolation, reinforcement, protection and other effects, is a widely used geosynthetics. The tensile strength of filament is higher than that of staple, so it can be used according to specific requirements.
We offer a wide range of nonwoven geotextiles made of polypropylene fibers, which provide excellent physical and hydraulic properties and are chemically stable in a wide range of environments. Primarily used for subsurface drainage, soil separation, filtration and rockslope protection. These are cost effective economical solutions for many applications, which will withstand installation stresses with high puncture and burst resistance. The high permeability properties provide high water flow rates for excellent filtration properties.

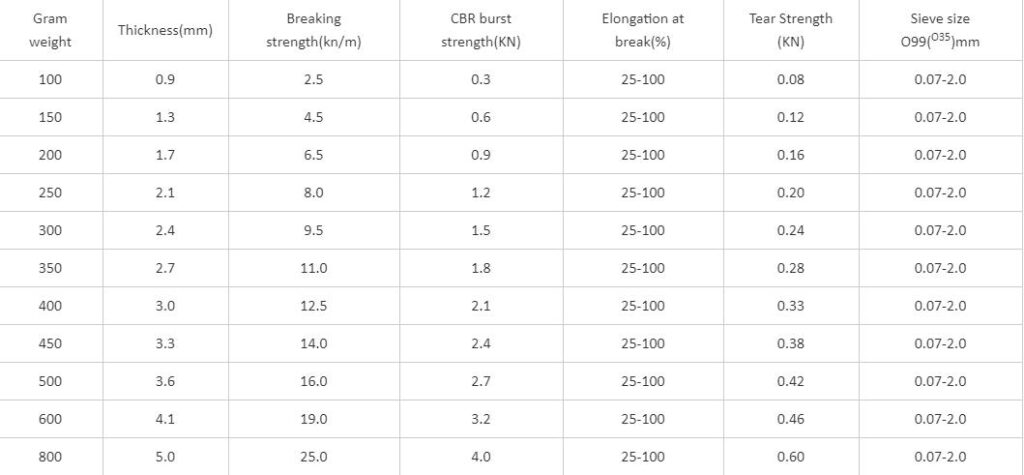

Technical Parameter

Product Applications

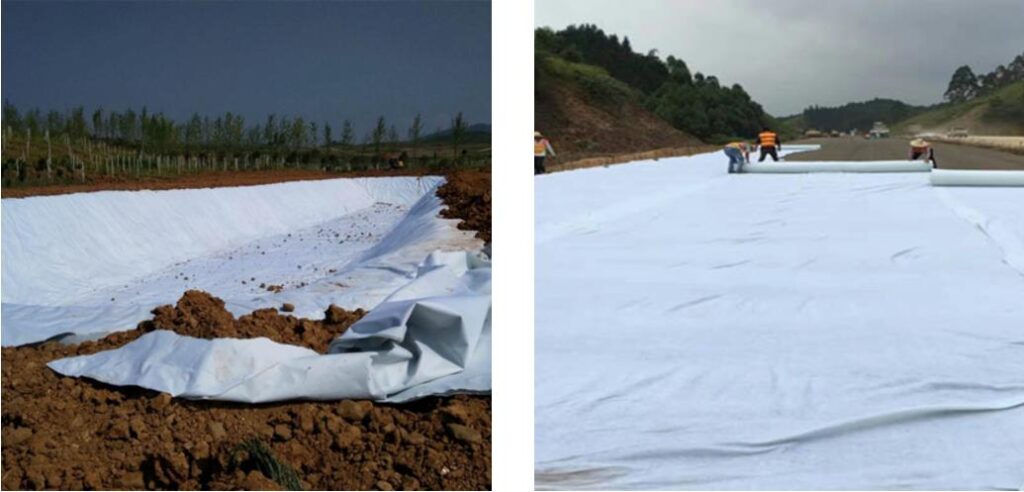

Applications of Geotextiles
1. Drainage
Geotextiles will efficiently collect surplus water from structures, such as rainwater or surplus water, from the soil and
discharge it.
2. Filtration
Our geotextiles provide superior hydraulic flow and soil retention, which makes them well suited for filtration in subsurface
drainage applications and under hard armour systems.
3. Separation
Geotextiles are used for paved and unpaved roads, where ground conditions have been compromised. As a separation layer,geotextiles can aid preventing the intermixing of dissimilar materials, add to the performance life of the road and reduce the overall thickness of the road section by requiring less aggregate during construction.
4. Reinforcement
High strength geotextiles can be used to reinforce earth structures as the strength of the tape or filament within the fabric
maybe increased to suit a specific application. Thanks to their high tensile strength they are an ideal reinforcement solution.
5. Protection
Due to the consistent thickness and weight of our Geotextiles, they provide adequate cushioning and protection for critical lining systems.



Q1: Are you a factory or trading company? Where is your company located?
A1: We are a manufacturer/factory. Our company is located in Shandong, China.

Q2: How do you ensure the quality?

A2: We are working with three QC processes to guarantee the quality:

1 .For raw materials;

2.Onsite inspection during production;

3.Final QC test for each batch of finished products.

Q3: OEM OR ODM accepted?

A3: We can produce the geotextile as per customer’s technical requirements.

Q4:How to get the sample?

A4: We can provide you samples for quality inspection. According to our company policy, samples are free,
we only charge the freight fee. The freight fee will be returned If you place the order.

Q5: What’s your MOQ? Can I order small quantity for testing at first order?

A5: For new client, we accept small order for building mutual trust and long-term business relationship.

Q6: How many days will samples be finished? And how about the mass production?

A6: Generally prompt delivery for samples. The leading time of mass production will depend on the quantity.

Q7: What’s the payment method you accept?

A7: T/T, L/C,D/P etc.

Q8: Can I visit your company?

A8: Welcome to visit our factory and it is our great pleasure.
