Stabilization PP Geogrid Soil Reinforcement Biaxial Plastic Geogrid

Biaxial Plastic Geogrid for Construction

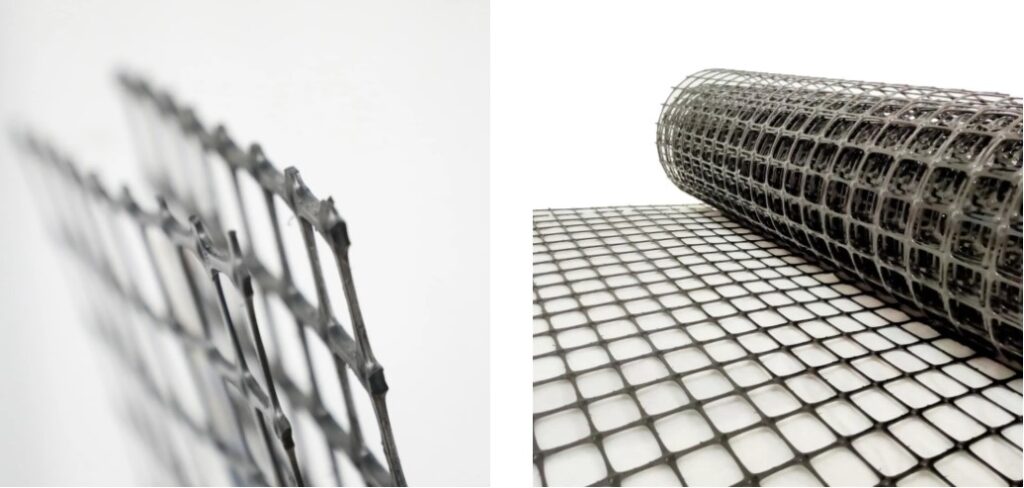

Geogrid is made of high polymer, which is extruded the thin sheet, then rushed the regular mesh and two ways extension. This material has a high tensile strength, so it can also provide the ideal force bear and spread of the interlock systems for the soil, suitable for large area permanent load-bearing of groundwork.
Biaxial geogrids have been utilized in pavement construction and soil stabilization projects throughout the worldwide.Biaxial Geogrid is Strata’s innovative geogrid that is made from extruded polypropylene which provides superior stiffness, aperture stability and interlock capabilities for structural reinforcement of paved and unpaved roads.

Biaxial Plastic Geogrid Technical Parameter (GB standard)eogrid Specifications:

Item TGSG1515TGSG2020TGSG2525TGSG3030TGSG3535TGSG4040TGSG4545TGSG5050
Vertical and horizontal tensile strength≥(KN/M)1520253035404550
Tensile strength at 2% elongation≥(KN/M)57910.512141617.5
Tensile strength at 5% elongation≥(KN/M)714172124283235
Tensile strength at 5% elongation≥(KN/M)1515151515151515

Feature:

Increase the bearing capacity of the roadbed and foundation and prolong their service life.
Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
Prevent culverts from flawing.
Enhance earth slope and prevent water loss and soil erosion.
Decrease underlayer thickness and save manufacturing cost.
Enhance the stability of side slope turf net patch to improve greening.
Replace wire netting used in mine as intermediate ceiling netting.

Performance

1,High tensile strength at both longitudinal (MD) and transverse direction(XMD).
2,Improving bearing capacity of foundation;
3,Preventing cracking and subsiding;
4,Convenient to construct, reducing cost and maintaining expense.

Application

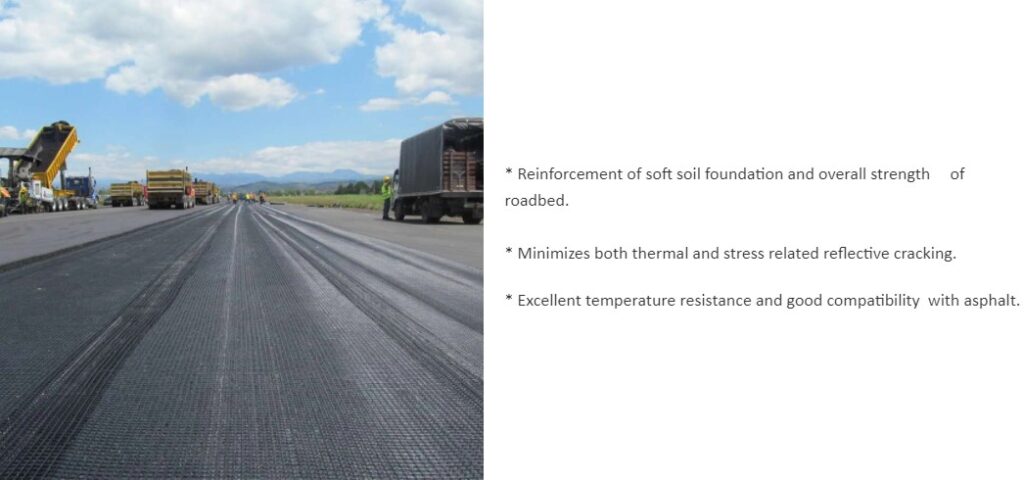

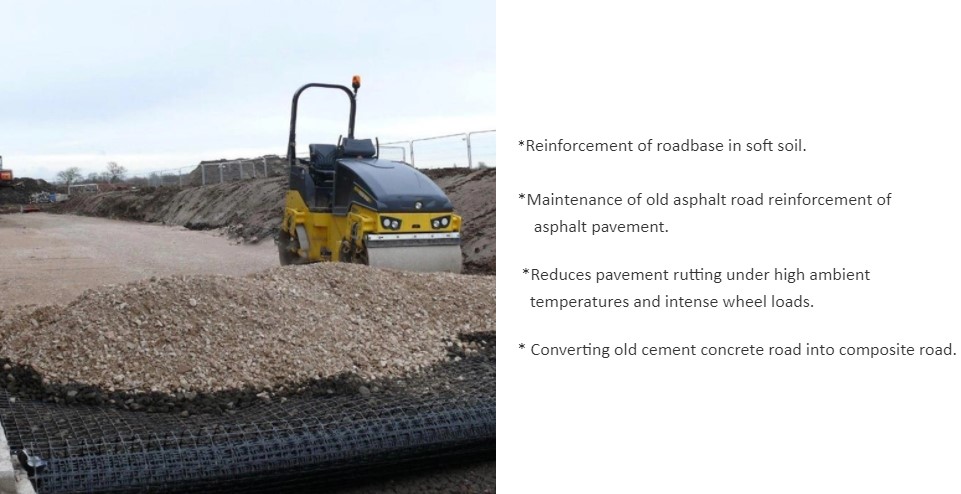

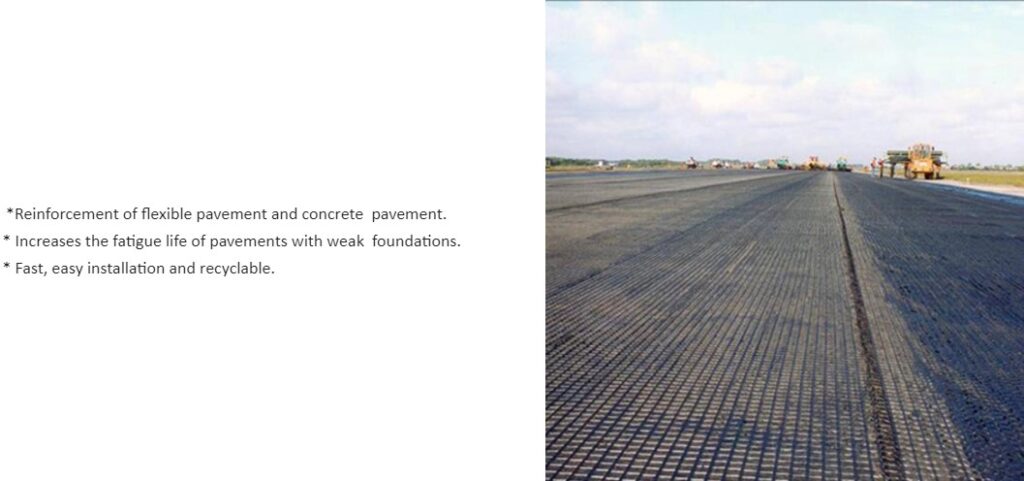

1. It is applied in reinforcement of roadbed and road surface of road, railway, airport, etc.;
2. It is applied in foundation reinforcement of perpetual bearings such as large-scale park, dock, and freight yard, etc.;
3. It is applied in the secondary reinforcement of earth slope after being reinforced by uniaxial plastic geogrid so as to further reinforce the earth slope and prevent water and soil loss;
4. It is applied in the reinforcement of culvert;
5. It is applied in slope protection of railway and road;
6. Reinforcement of mine and gallery;
7. Special network used in livestock breeding;
8. Special network used in cage culture.

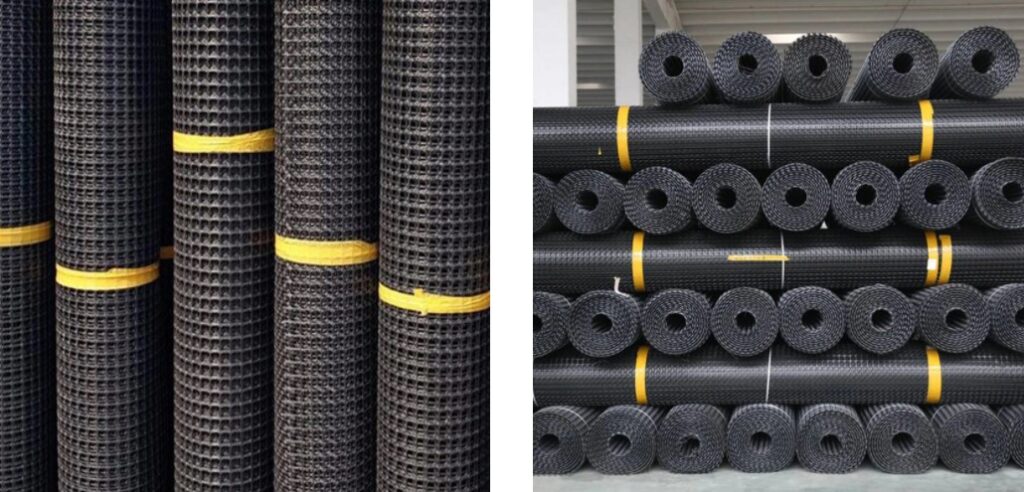

Packaging & Shipping
