Three-Dimension Composite Geonets for Pavements Drainage

Product Description

Three dimensional composite drainage network is a new type of geosynthetics. Its structure is a three dimensional geonet core, and there are needle punched non woven geotextiles on both sides. The three dimensional geogrid core consists of a thick vertical rib and an inclined rib at the top and bottom, which can rapidly drain the around water from the road.
It also has a pore maintenance system, which can block capillary water under high load. At the same time, it can also play the role of isolation and foundation reinforcement.

Specifications:

  • Product name: three dimensional composites drainage network.
  • Material: high density polyethylene.
  • Length: 30 m, 40 m, 50 m or at your requests.
  • Width: 2 m – 4 m.
  • Thickness: 5 mm – 8 mm.
  • Non woven geotextile unit weight: 200 g/m2.
  • Mass per unit area: 700 g/m2, 1000 g/m2, 1300 g/m2, 1600 g/m2.

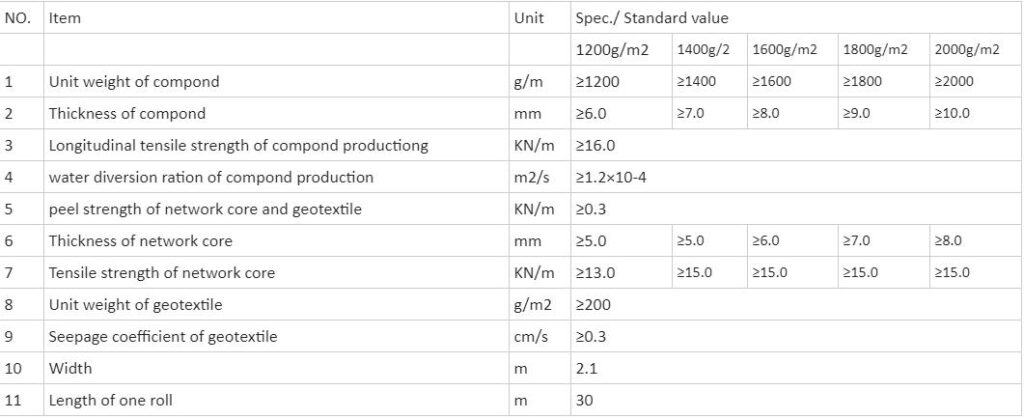

Technical Parameter

Advantages:

The characteristics of 3D composite drainage net:
The drainage ability is strong, can withstand the long-term high load
The high tensile strength and shear strength of the pit
To reduce the probability of the geotextile is embedded in the network core, can protect the long-term stability of the rate of water
The three-dimensional composite drainage net can withstand more than 2000kpa compression load
Far greater than the ordinary drainage network resilience
