Tri-Dimension Composite Geonet for Drainage for Road Railway Highway Tunnel

Product Description

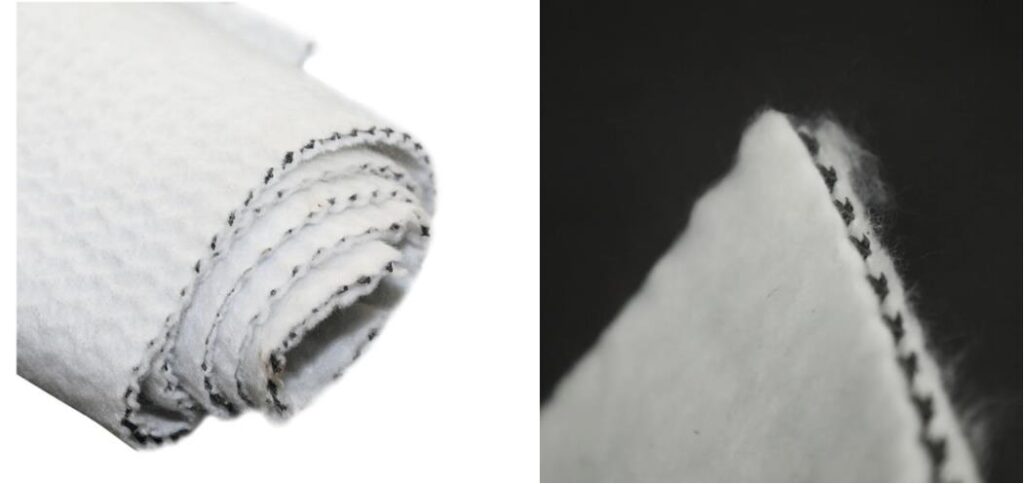

Geocomposite drainage Geonet
Three dimensional composite drainage network is a new type of geosynthetics. Its structure is a three dimensional geonet core, and there are needle punched non woven geotextiles on both sides. The three dimensional geogrid core consists of a thick vertical rib and an inclined rib at the top and bottom, which can rapidly drain the around water from the road.
It also has a pore maintenance system, which can block capillary water under high load. At the same time, it can also play the role of isolation and foundation reinforcement.


  • Product name: three dimensional composites drainage network.
  • Material: high density polyethylene.
  • Length: 30 m, 40 m, 50 m or at your requests.
  • Width: 2 m – 4 m.
  • Thickness: 5 mm – 8 mm.
  • Non woven geotextile unit weight: 200 g/m2.
  • Mass per unit area: 700 g/m2, 1000 g/m2, 1300 g/m2, 1600 g/m2.

Technical Parameter


The characteristics of 3D composite drainage net:
The drainage ability is strong, can withstand the long-term high load
The high tensile strength and shear strength of the pit
To reduce the probability of the geotextile is embedded in the network core, can protect the long-term stability of the rate of water
The three-dimensional composite drainage net can withstand more than 2000kpa compression load
Far greater than the ordinary drainage network resilience

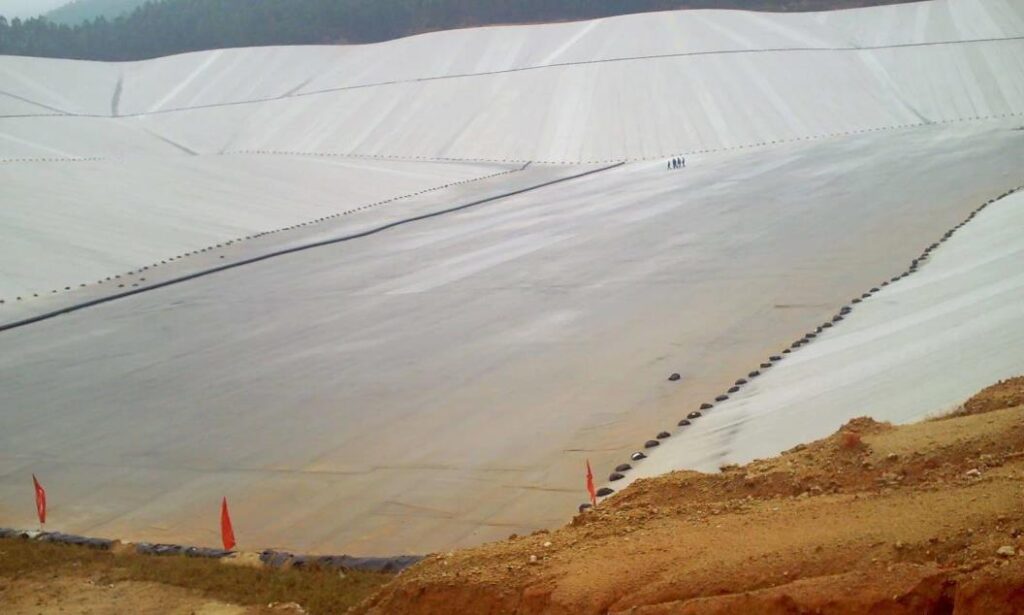

1) Landfill drainage;
2) Roadbed and road drainage;
3) Railway drainage, tunnel drainage, underground structure drainage.
4) The retaining back wall drainage,
5) gardens and sports grounds drainage.


Are you a manufacturer or a trading company?
Our factory has been established for over 15 years ,and has its own trading department. So we have the competitive price with best quality.

How does your factory carry out quality control?
Quality Control is one of our most important link. All of the product will be fully processed and strictly tested before packaging for shipment.

Can I get samples for checking the quality?
We can provide free samples. But you need to pay the freight. After you place the order, we will refund the single freight of the sample.

What’s your MOQ?
Our MOQ is usually 2000sqm per color.

What’s your delivery time?
It’s about 14 days after we received the deposit.

What’s your payment terms?
TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or LC at sight.

Can I visit your factory?
We always welcome you to visit our factory. Transportation is very convenient in China. You can take high-speed rail or plane, and we will pick
you up in advance.
Please contact me for more info today!

Professional geosynthetics manufacturer
 Anhui Zhonglu Engineer Materials Co., Ltd
